RavenDB Embedded with Management Studio UI



Go directly to solution with no bla bla bla…

I’ve been playing with RavenDB (a NoSQL document-oriented database) in an ASP.NET MVC 4 project for the past week. One thing I tried to do was to access RavenDB Management Studio UI so that I could see what’s actually present within the document store. This is important because one needs to check if docs are really being inserted, related docs are being deleted, etc…

Given that I’m running the embedded version of RavenDB (RavenDB-Embedded.1.0.499 package installed via NuGet in Visual Studio 2010), I was stuck trying to access the management studio since there isn’t much documentation on this subject when it comes to the EmbeddableDocumentStore. After struggling with it for about an hour of Googling and try and error, I decided to post a question at StackOverflow: Running RavenDB as an EmbeddableDocumentStore and accessing RavenDB Management Studio. Then I took a break to have launch and took a nap. After that I got back here to try a different approach and it really does work. Of course this is only a way to achieve what I want. This may not be the best approach but it’s enough. Just follow theses steps:

1 - Grab RavenDB latest build here:
http://builds.hibernatingrhinos.com/downloadlatest/ravendb

2 - Extract the files to C:\RavenDB-Build-499

3 - Edit the .config file in C:\RavenDB-Build-499\Server\Raven.Server.exe.config to point to your embedded database:

<appSettings>

<add key="Raven/Port" value="8088"/>

<add key="Raven/DataDir" value="C:\MyProject\trunk\MyProject\
App_Data\Database"
/>

<add key="Raven/AnonymousAccess" value="Get"/>
</appSettings>

4 - Click the Start.cmd present in the root folder C:\RavenDB-Build-499\Start.cmd

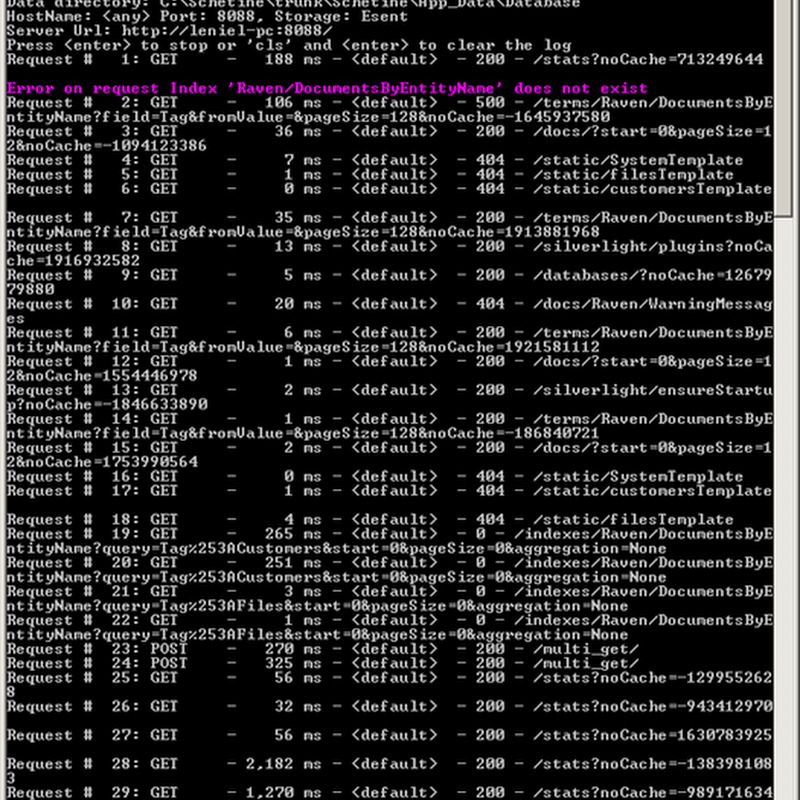

The server status output window should appear while it starts:

RavenDB server status windowFigure 1 - RavenDB server status window

When the server finishes its starting process, the Silverlight Management UI should be automatically opened in your preferred browser.

RavenDB Management UI (Web UI)Figure 2 - RavenDB Management Studio UI (Web UI)

Now I can see my docs, indexes, etc… and I hope you can too! :D

Note to self
According to John Allers, one should be able to access the Management Studio without having to start the server manually. That’s fine and I had already tried that, but I could not get it working at first (some days ago). This has led me to try everything else today and my last resort was posting a question at StackOverflow. After trying once more the same procedure, that is, trying to access the management studio using the URL http://localhost:8080, I finally got it working! Go figure. One possibility is that I had another service running on port 8080 when I first attempted to access the UI. As Windows has restarted since then, that service (Hudson probably) that was running on port 8080 is stopped and now everything just works as expected.

Things to do:

1 - Instantiate your EmbeddableDocumentStore this way:

_documentStore = new EmbeddableDocumentStore
            {
                ConnectionStringName = "YourDbName",
                UseEmbeddedHttpServer = true
            };

2 - Copy Raven.Studio.xap present in C:\RavenDB-Build-499\Server\ folder to the root folder of your web project

3 - Run you your web app

4 - Access http://localhost:8080 and voila… everything SHOULD work out of the box.

5 - Select Default Database:

RavenDB Management Studio accessed without running the server manuallyFigure 3 - RavenDB Management Studio accessed without running the server manually

Resources
Embedding RavenDB into an ASP.NET MVC 3 Application
